FST-RP-HC8310FKP16H Hydraulic Filter Element

Basic Info

Model No.FST-RP-HC8310FKP16H Hydraulic Filter Element


MaterialChemical Fiber

TypeFolding Microporous Filter

Activated Carbon Filter TypeCompact

Additional Info

PackagingStandard exporting packingg or carons

Productivity100,000 PCS/YEAR


Place of OriginXINXIANG, CHINA

Supply Ability100,000PCS/YEAR


HS Code8421999090


Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union


Delivery Time10 Days

Product Description
FST-RP-HC8310FKP16H Oil Filter Element:
Production descible:

Main advantages:
(1) A new Filter Material is made for the filter element. The multi-layer filtration structure ensures the ability of separation of high contamination and dirty pollution, uniform texture, corrosion resistance and fatigue resistance.
(2) innovating longitudinal joint technology and perfectly joining the end of filter material, especially under different loads, the effective value can prevent suspended particles from entering the filter zone from the dirt area.
(3) in the operation of filter element, the static electricity can be derived below the safe value, and the continuous formation of black carbon or the formation of silt oil can be excluded.
(4) the original imported filter media has uniform aperture, low resistance and large dust capacity.
(5) Germany imported composite filter folding machine to increase the effective filter area.
(6) oil and temperature resistant cyclopropyl resin adhesive. The seal is firm.
(7) thickened steel plate skeleton. Strong pressure drop resistance.
(8) to leave the factory after passing the inspection. The quality is reliable.

The HC8310FKP16H series filter element is mainly used for oil filtration in hydraulic system. The filter material is made from fiber and resin through special technology. It has fixed void structure and no fall off of filter material. Can completely replace the original factory products, to achieve the original plant filtration effect.

Characteristics and advantages:
This type filter element is used to remove the metal powder and other mechanical impurities of various components in the hydraulic system to keep the oil path clean, which can prolong the life of the hydraulic system.

Technical Data:

Filter element type

High efficiency folding filter

Filter Medium

Resin consolidated glass fiber high efficiency filter material mixed with wire mesh

Accuracy of glass fiber

1,3, 5, 5, 7, 10, 12, 22 microns available

Internal support and end cover material

Metallized tin / reinforced nylon / stainless steel

Working temperature


Working pressure


1.Metallurgy: used for filtration of rolling mill, continuous casting machine hydraulic system and various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in refining and chemical production, filtration of oil well water and natural gas.
3.Thermal power and nuclear power: gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, feed water pump, fan and dust removal system purification.
4.All kinds of lifting, handling operations: lifting, loading and other engineering machinery to fire, maintenance, handling and other special vehicles, ship crane, anchor, blast furnace, steelmaking equipment, lock, ship door hoist, Theater's lift and lift stage, all kinds of automatic transmission line and so on.
FST-RP-HC8310FKP16H filter element instead of PALL Hydraulic Oil Filter element execution standard:
ISO2491 filter-rupture resistance experiment:
The test of resistance to rupture of filter element belongs to the strength test of the filter element itself. The filter element is generally subjected to external force by the pressure difference limit after carrying the dirt in the filter shell. The inner skeleton is the main support of the filter layer under the limit pressure difference of the filter element, and the collapse of the skeleton will lead to the collapse of the filter layer.
ISO2492 filter element structural integrity experiment:
The significance of the requirement of the integrity of the filter element structure, the filter material is very good, the filter material is broken or made incomplete in the process of making the filter element, the incomplete phenomenon mainly manifests in: the filter material is damaged, the end cover is not glued strictly, the filter material butt joint is not strict and solid. It will greatly affect the original filtering accuracy.
ISO2493 filter element the compatibility betwee material and liquid experiment:
The compatibility test between filter element and working fluid is mainly a validation test of the properties of raw materials used in the process of making filter elements, such as compatibility with petroleum, water diol, water-oil emulsion and liquid with high water content. PTFE seals are standard configurations and can be used in conjunction with industrial phosphate, diesters and specific synthetic materials.
ISO3726 filter element experimental method of the end load:
The end load test of the filter element mainly tests the ability of bearing the axial mounting force, the strength, the axial load, the flattening strength and so on.
ISO3724 filter element the determination of fatigue characteristics:
The test of the fatigue characteristics of the filter element is the test of the life of the filter element. The filter element works in the hydraulic system, withstanding the reciprocating and alternating fluid flow of the system and the pressure impact of the working flow. Under this impact, if the filter element has accumulated pollutants and established a greater pressure difference, then the pressure of the filter layer withstanding the fluid flow will be greater.
ISO3968 filter element determination of flow characteristics and the pressure difference:
The pressure drop flow characteristic is usually an assessment of the filter, but in fact, it mainly evaluates the flow rate and resistance of the filter core. Of course, in the design of filter assembly, there are flow and bypass problems in the channel design of the shell. But after all, it is not the main problem, the main problem is the filter, so the standard mainly checks the filter, not the filter.
The replacement of PALL company hydraulic filter type Series (FST- RP-xxxxxxxx):









































FST-RP-HC8310FKP16H Hydraulic Filter ElementHC8310FKP16H Hydraulic Filter ElementHC8310FKP16H Oil Filter ElementPALL HC8310FKP16H Oil Filter Element

Looking for ideal HC8310FKP16H Hydraulic Filter Element Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the HC8310FKP16H Oil Filter Element are quality guaranteed. We are China Origin Factory of PALL HC8310FKP16H Oil Filter Element. If you have any question, please feel free to contact us.

Product Categories : Brand Filters Exchanged Series > PALL Filters

Product Images

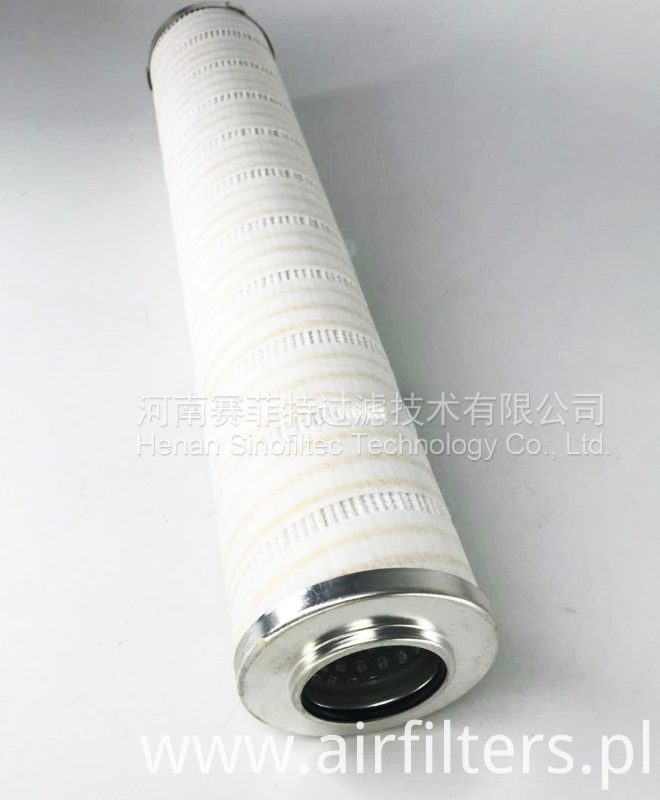

  • FST-RP-HC8310FKP16H Hydraulic Filter Element

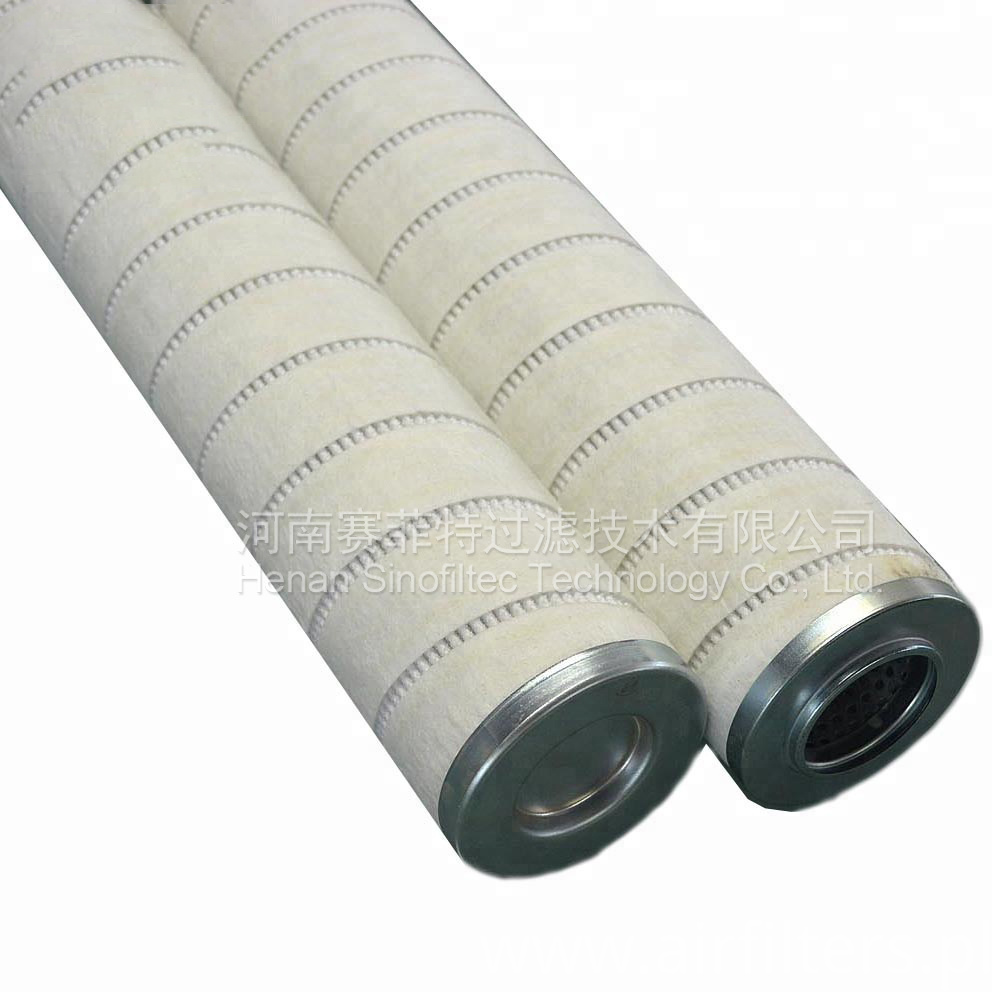

  • FST-RP-HC8310FKP16H Hydraulic Filter Element

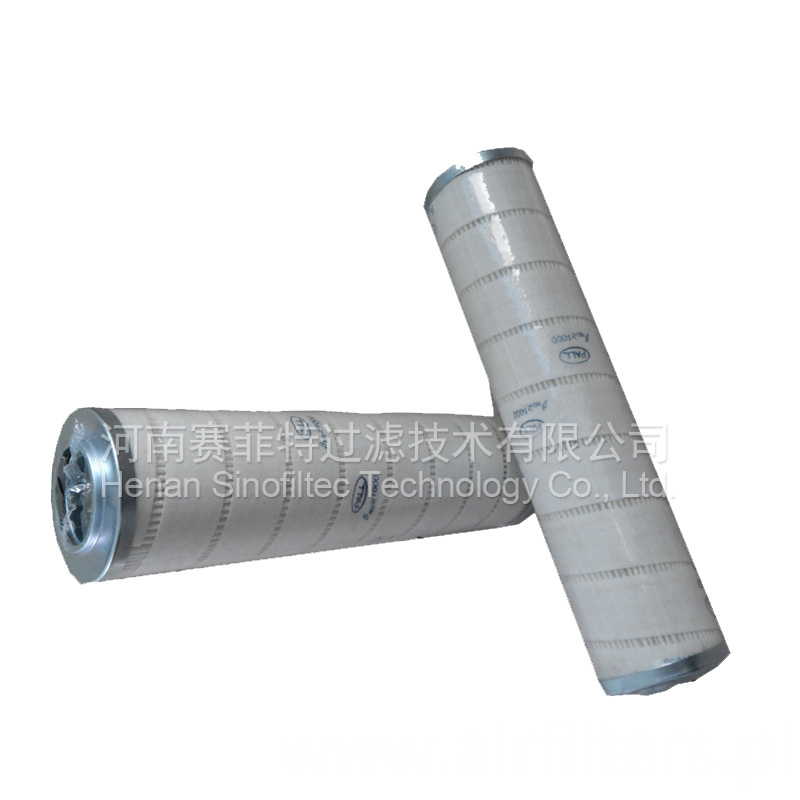

  • FST-RP-HC8310FKP16H Hydraulic Filter Element
